CM1000HA-28H IGBT Module

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of one IGBT Transistor in a single configuration with a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simpli.

CM1000HA-28H Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery (135ns) Free-Wheel Diode

* High Frequency Operation (20-25kHz)

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* Motion/Servo Control

* UPS

CM1000HA-28H_PowerexPowerSemiconductors.pdf

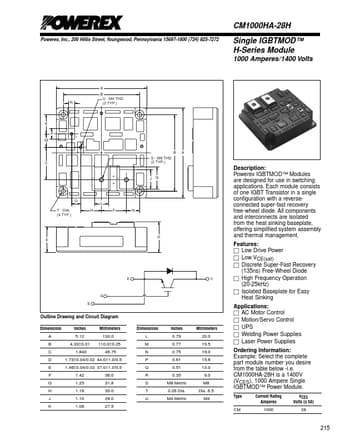

CM1000HA-28H Datasheet Preview — Preview of CM1000HA-28H PDF

Datasheet Details

Part number:

CM1000HA-28H

Manufacturer:

Powerex Power Semiconductors

File Size:

64.88 KB

Description:

Igbt module.
