CM150DU-12F

IGBT Module

CM150DU-12F Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* UPS

* Battery Powered Supplies Ordering Information: Example: Select the complete mo

CM150DU-12F General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinki.

CM150DU-12F Datasheet (351.43 KB)

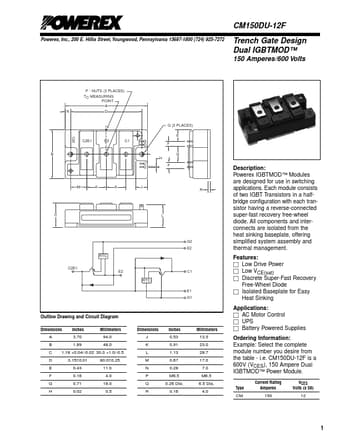

Preview of CM150DU-12F PDF

Datasheet Details

Part number:

CM150DU-12F

Manufacturer:

Powerex Power Semiconductors

File Size:

351.43 KB

Description:

Igbt module.
CM150DU-12F Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Trench Gate Design Dual IGBTMOD™ 150 Amperes/600 V.
