CM150DC-24NFM Dual IGBT

Powerex NFM IGBT Modules are designed for use in hard switching (15-30kHz) applications. Each module consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverse-connected superfast recovery free-wheel diode. All components and interconnects are isolated fro.

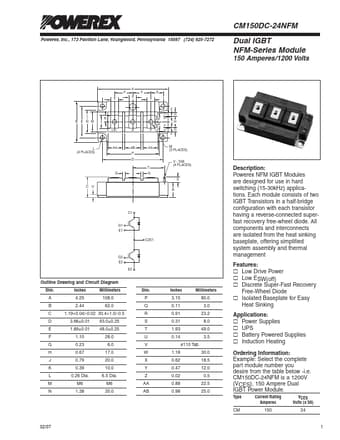

Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 CM150DC-24NFM Dual IGBT NFM-Series Module 150 Amperes/1200 Volts A F F X YYY K B E NW J C2E1 E2 Z G2 G Z E2 Z E1 H C1 G1 G Z L (4 PLACES) CU AA AB AA P D T QQ M (3 PLACES) V - TAB (4 PLACES) S R C1 G1 E1 C2E1 G2 E2 E2 Outline Drawing and Circuit Diagram Dim. Inches Millimeters A 4.25 108.0 B 2.44 62.0 C 1.19+0.04/-0.02 30.4+1.0/-0.5 D 3.66±0.01 93.0±0.25 E 1.89±.

CM150DC-24NFM Features

* £ Low Drive Power £ Low ESW(off) £ Discrete Super-Fast Recovery Free-Wheel Diode £ Isolated Baseplate for Easy Heat Sinking Applications: £ Power Supplies £ UPS £ Battery Powered Supplies £ Induction Heating Ordering Information: Example: Select the complete part module number you desire f
