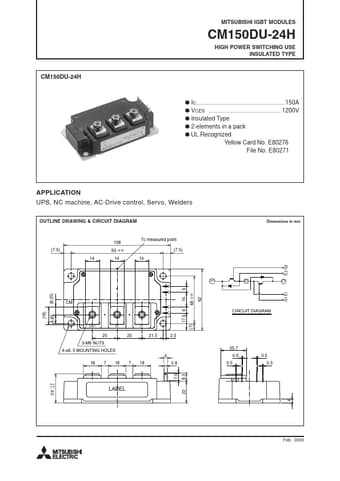

CM150DU-24H IGBT MODULES

Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplat.

CM150DU-24H Features

* ٗ Low Drive Power ٗ Low VCE(sat) ٗ Discrete Super-Fast Recovery Free-Wheel Diode ٗ High Frequency Operation ٗ Isolated Baseplate for Easy Heat Sinking Applications: ٗ AC Motor Control ٗ Motion/Servo Control ٗ UPS ٗ Welding Power Supplies Ordering Information: Example: Select the complete module num
