* n Electrically Isolated Heatsinking n Metal Baseplate n Low Thermal Impedance for Improved Current Capability n UL Recognition Pending Applications: n Battery Supplies n Bridge Circuits n AC & DC Motor Control n Rectifiers Dimensions Dimension A B C D E F K GO / .251 .261 Inches Min. 3.681 3.145

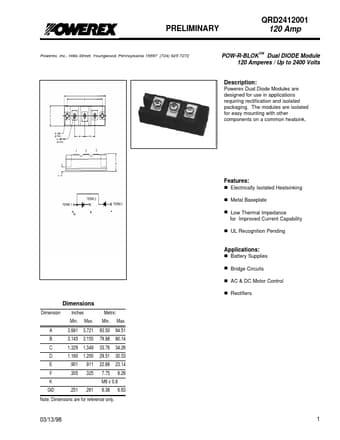

QRD2412001 Datasheet (58.35 KB)
QRD2412001
Powerex Power Semiconductors
58.35 KB
Pow-r-blok dual diode module (120 amperes / up to 2400 volts).
PRELIMINARY
QRD2412001 120 Amp
TM
Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK Dual DIODE Module 120 Amper.
