GBJ2500, BRIDGE RECTIFIERS

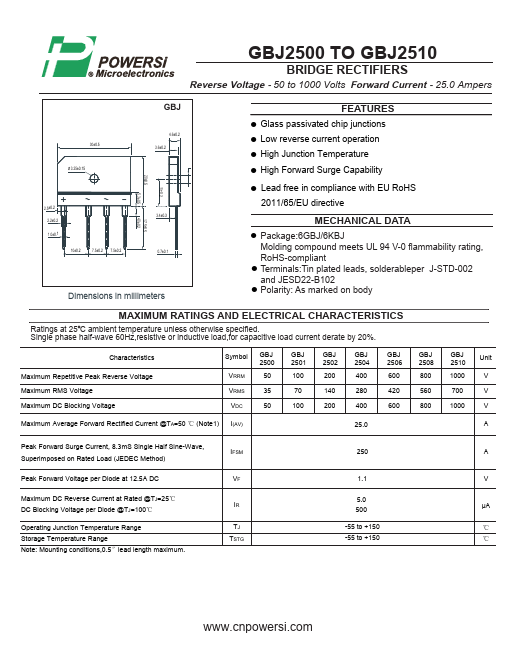

GBJ2500 TO GBJ2510 BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 25.0 Ampers 30±0.5 Ø 3.25±0.15 + 2.5±0.2 2.2±0.2 1.0±0.1 .

datasheet Preview Page 1 from Datasheet4u.com

GBJ2500-Powersi.pdf

GBJ2500 Datasheet Preview — Preview of GBJ2500 PDF

Datasheet Details

Part number:

GBJ2500

Manufacturer:

Powersi

File Size:

821.44 KB

Description:

BRIDGE RECTIFIERS

Features

* Glass passivated chip junctions
* Low reverse current operation
* High Junction Temperature
* High Forward Surge Capability
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Package:6GBJ/6KBJ Molding compound meets UL 94 V-0 flammability rating,

Applications

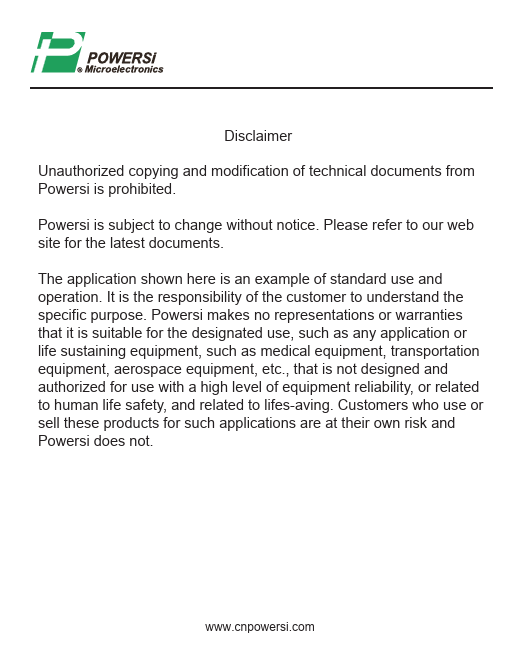

* are at their own risk and Powersi does not. www. cnpowersi. com
