GBJ2502, GBJ2500 BRIDGE RECTIFIERS

Description

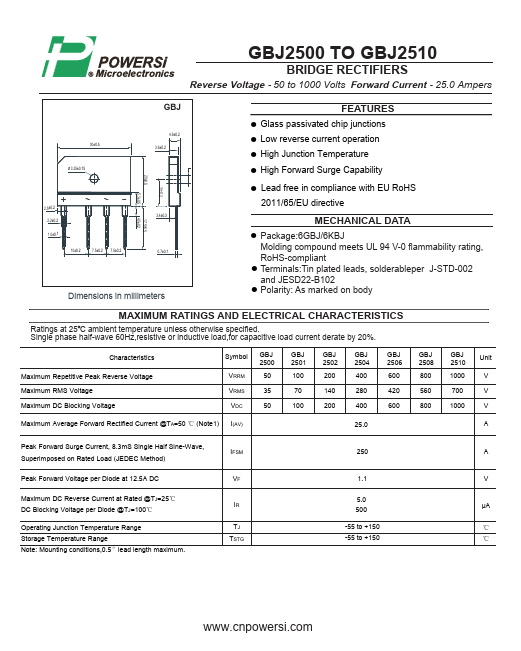

GBJ2500 TO GBJ2510 BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 25.0 Ampers 30±0.5 Ø 3.25±0.15 + 2.5±0.2 2.2±0.2 1.0±0.1 .

📥 Download Datasheet

GBJ2502 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ2502, GBJ2500. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBJ2502, GBJ2500
Manufacturer: Powersi
File Size: 821.44 KB
Datasheet: GBJ2500-Powersi.pdf
Description: BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: GBJ2502, GBJ2500.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junctions
* Low reverse current operation
* High Junction Temperature
* High Forward Surge Capability
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Package:6GBJ/6KBJ Molding compound meets UL 94 V-0 flammability rating,

Applications

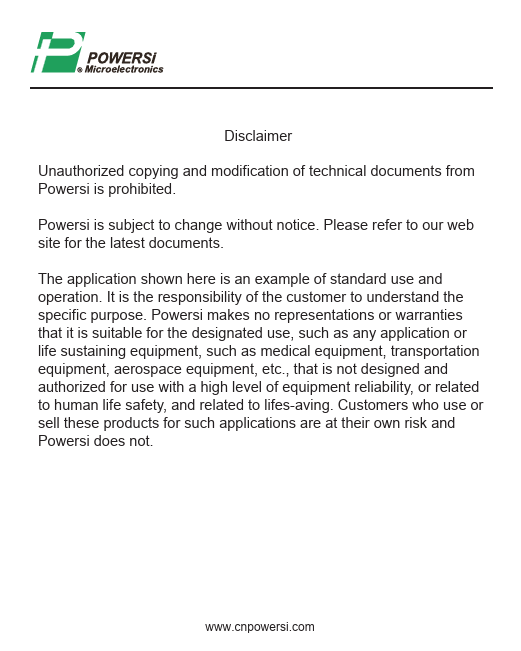

* are at their own risk and Powersi does not. www. cnpowersi. com
