PT2320 Datasheet - Princeton Technology Corp

Multi-Channel AV Control Center

PT2320 Features

* Very Low Power Consumption (DC=9V)

* I2C Bus Control

* 8 Group Input Select

PT2320 General Description

PT2320 is a Modern Multi-Channel AV Control Center IC. Eight group input selectors (seven stereo inputs & one 6-channel individual input), 4 video inputs, 6-channel master volume control, 6-channel individual volume trim control, 3-band tone control (treble, middle, and bass), recording output, sele.

PT2320 Datasheet (51.84 KB)

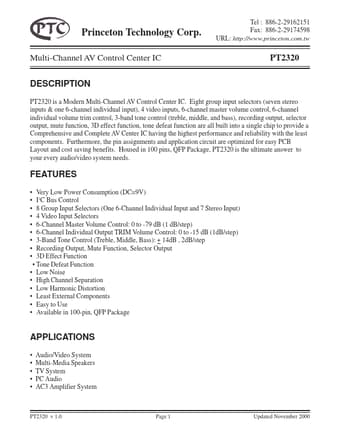

PT2320 Datasheet Preview — Preview of PT2320 PDF

Datasheet Details

Part number:

PT2320

Manufacturer:

Princeton Technology Corp

File Size:

51.84 KB

Description:

Multi-channel av control center.
Princeton Technology Corp. Tel : 886-2-29162151 Fax: 886-2-29174598 URL: http://www.princeton.com.tw Multi-Channel AV Control Center IC PT2320 DES.
