PT2328 - Low On-Resistance Wideband/Video Quad 2-Channel Mux/DeMux

PT2328 Description

Tel: 886-2-66296288 Fax: 886-2-29174598 URL: http://www.princeton.com.tw Low On-Resistance Wideband/Video Quad 2-Channel Mux/DeMux PT2328 DESCRIPTI.
The PT2328 is a true bidirectional Quad 2-channel multiplexer/ de-multiplexer utilizing CMOS Technology.

PT2328 Features

* Video signal switch Wide bandwidth: 240MHz Low On-Resistance: 5Ω, Low signal loss Low crosstalk: 10MHz/-58dB Extremely low power consumption Single supply: +5V Switching speed: 5nS Output driver current: >100mA

PT2328 Applications

* The video switch can be driven from a video DAC or a composite video source. The very low ON-resistance and wide bandwidth make it ideal for video and other applications. High output current which is far greater than most analog switches offered today, only need a single 5V supply for operation. Th

📥 Download Datasheet

Preview of PT2328 PDF

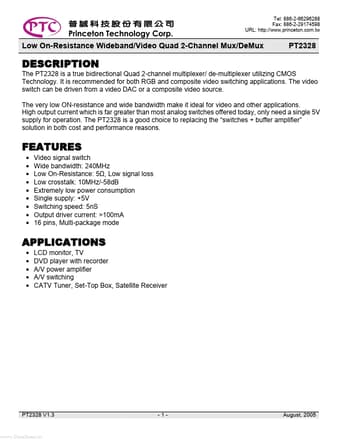

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT2328
Manufacturer
Princeton Technology
File Size
487.70 KB
Datasheet
PT2328_PrincetonTechnology.pdf
Description
Low On-Resistance Wideband/Video Quad 2-Channel Mux/DeMux
