PT2322 - 6-Channel Audio Processor IC

Product Overview

Princeton Technology

📥 Download Datasheet

PT2322 6-Channel Audio Processor IC by Princeton Technology - Datasheet Preview — Datasheet preview – PT2322

Datasheet Details

Part number	PT2322
Manufacturer	Princeton Technology
File Size	348.39 KB
Description	6-Channel Audio Processor IC
Datasheet	PT2322 Datasheet

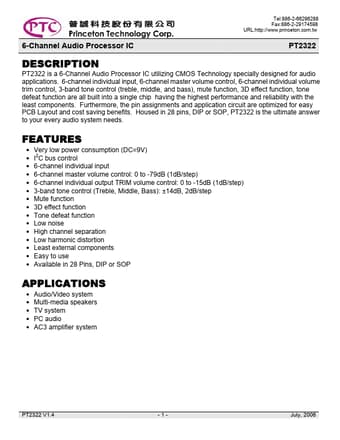

Additional preview pages of the PT2322 datasheet.

Product details

Description

PT2322 is a 6-Channel Audio Processor IC utilizing CMOS Technology specially designed for audio applications.

Features

Very low power consumption (DC=9V).
I2C bus control.
6-channel individual input.
6-channel master volume control: 0 to -79dB (1dB/step).
6-channel individual output TRIM volume control: 0 to -15dB (1dB/step).
3-band tone control (Treble, Middle, Bass): ±14dB, 2dB/step.
Mute function.
3D effect function.
Tone defeat function.
Low noise.
High channel separation.
Low harmonic distortion.
