PNMT60V02

N-Channel MOSFET

PNMT60V02 General Description

PNMT60V02 is designed for high speed switching applications The enhancement mode MOS is extremely high density cell and low on-resistance. D（3） VDS(V) 60 MOSFET Product Summary RDS(on)(Ω) VGS(th)(V) 7.5@ VGS=10V 0.5 to 1.5 ID(A) 0.18 G（1） S（2） Electrical characteristics per line@25℃( unles.

PNMT60V02 Datasheet (140.98 KB)

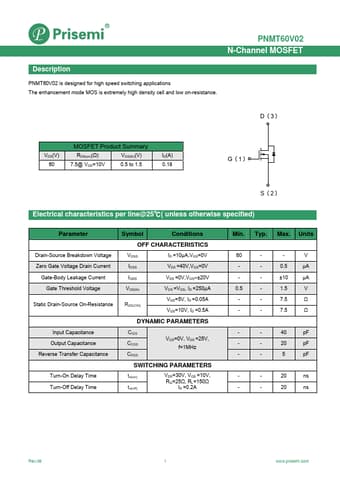

Preview of PNMT60V02 PDF

Datasheet Details

Part number:

PNMT60V02

Manufacturer:

Prisemi

File Size:

140.98 KB

Description:

N-channel mosfet.
