Description
The MOSFET provide the best combination of fast switching , low on-resistance and cost-effectiveness.
MOSFET Product Summary
VDS(V) -20
RDS(on)(mΩ) 130 @ VGS = -4.5V 160 @ VGS = -2.5V
ID(A) -2
Feature
High Power and current handing capability Lead free product is acquired Surface Mount Package
Applications
PWM applications Load switch Power management
Absolute maximum rating@25℃
Rating Drain-source Voltage Gate-source Voltage Drain Current Pulsed Drain Current Total Power Dissipation Channel to ambient Junction and Storage Temperature Range

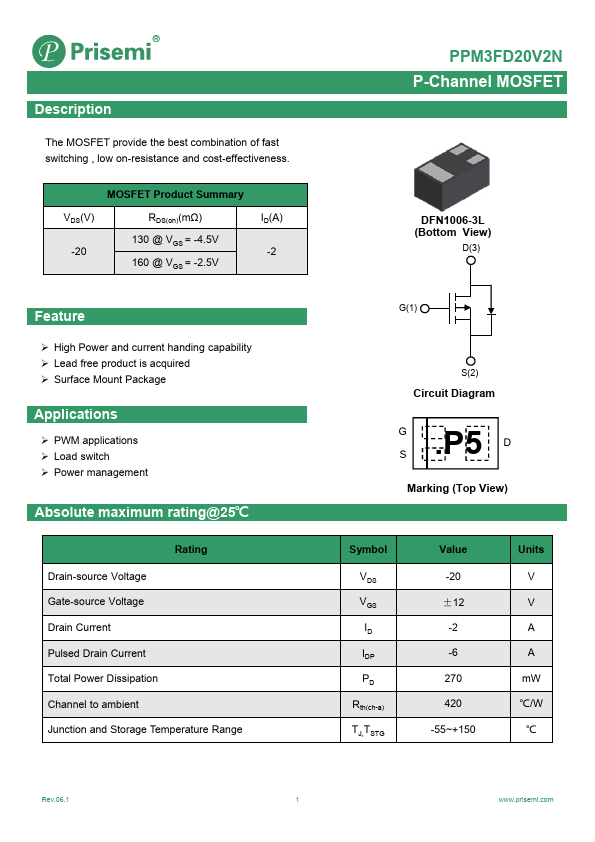

PPM3FD20V2N P-Channel MOSFET
DFN1006-3L (Bottom View)
D(3)
G(1)
S(2)
Circuit Diagram
.

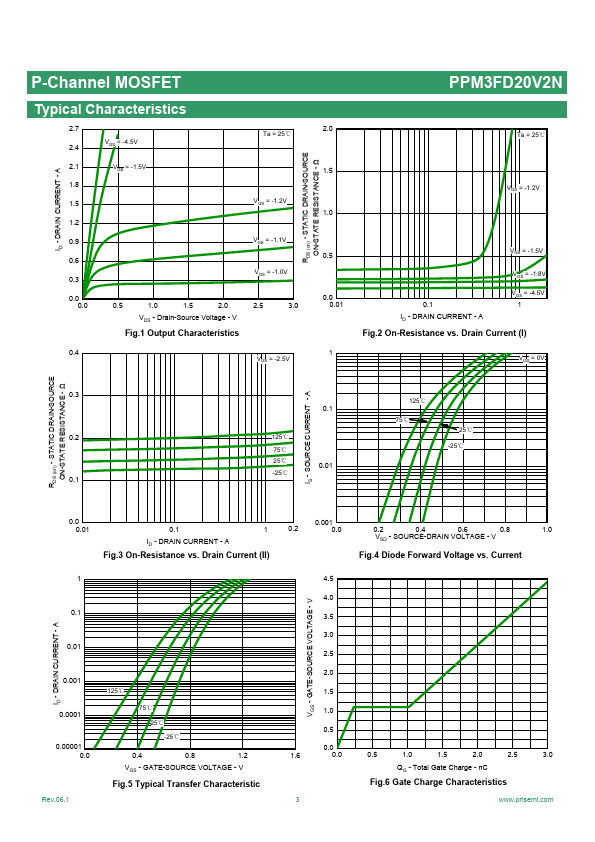

PPM3FD20V2N Datasheet
