Part number:
PPM6N20V10
Manufacturer:
Prisemi
File Size:
240.29 KB
Description:
P-channel mosfet.

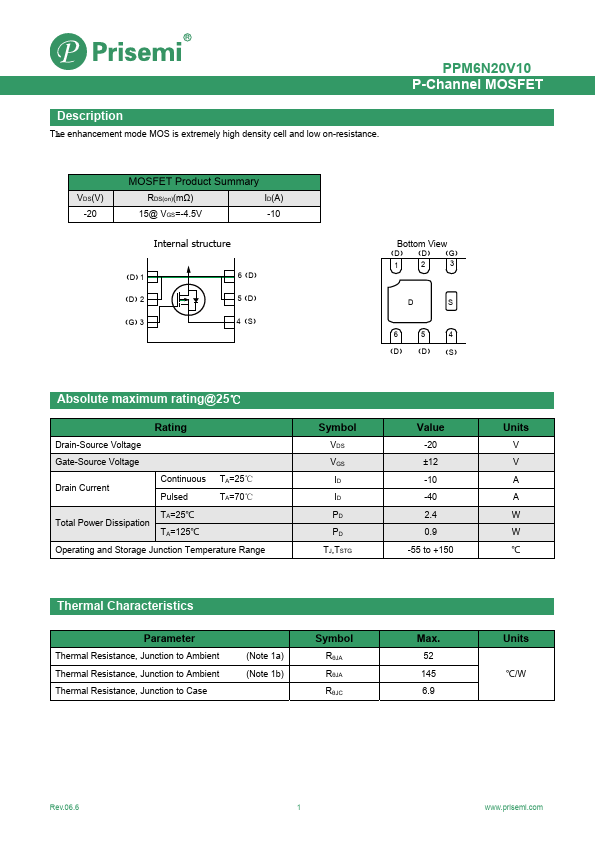

The enhancement mode MOS is extremely high density cell and low on-resistance.
PPM6N20V10 P-Channel MOSFET VDS(V) -20 MOSFET Product Summary RDS(on)(mΩ) ID(A) 15@ VGS=-4.5V -10 Internal structure (D)1 (D)2 (G)3 6(D) 5(D) 4(S) Bottom View (D) (D) (G) 1 2 3 D S 6 5 4 (D) (D) (S)
Datasheet Details
PPM6N20V10
Prisemi
240.29 KB
P-channel mosfet.
