PPM6N30V8 - P-Channel MOSFET

Prisemi

PPM6N30V8 Datasheet Preview — Preview of PPM6N30V8 PDF

Datasheet Details

Part number	PPM6N30V8
Manufacturer	Prisemi
File Size	403.72 KB
Description	P-Channel MOSFET
Datasheet	PPM6N30V8-Prisemi.pdf

PPM6N30V8 Product details

Description

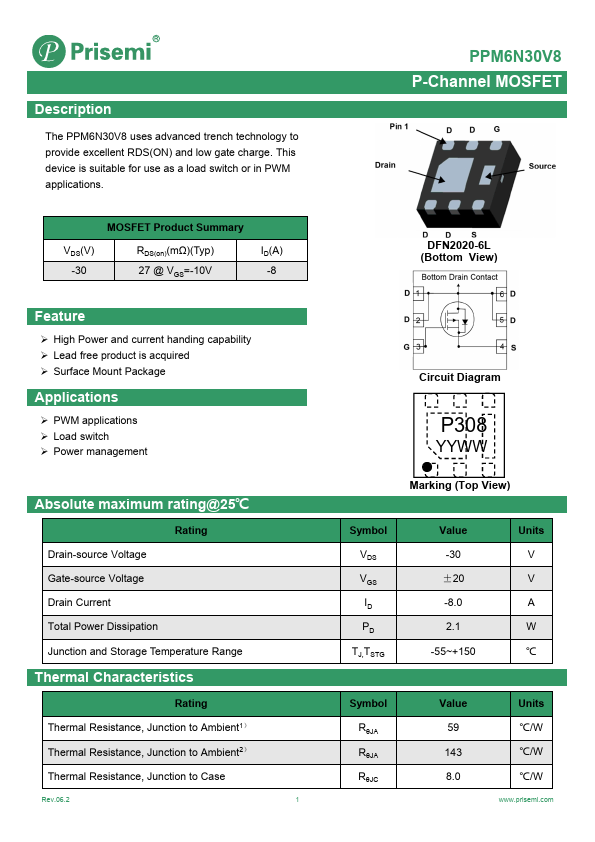

The PPM6N30V8 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. High Power and current handing capability Lead free product is acquired Surface Mount Package Applications PWM applications Load switch Power management Absolute maximum rating@25℃ Rating Drain-source Volt
