PPM723T201E0 Datasheet - Prisemi

PPM723T201E0 - P-Channel MOSFET

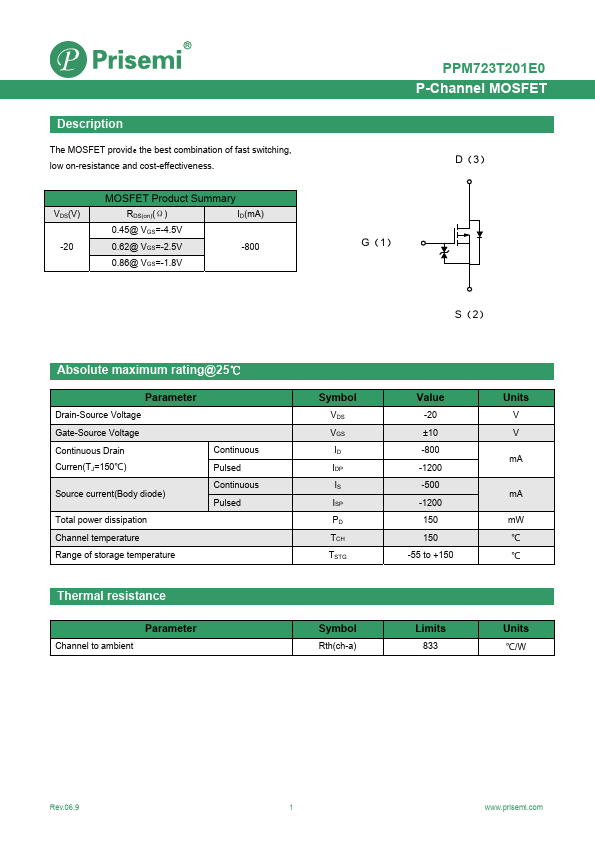

The MOSFET provide the best combination of fast switching, low on-resistance and cost-effectiveness. VDS(V) -20 MOSFET Product Summary RDS(on)(Ω) ID(mA) 0.45@ VGS=-4.5V 0.62@ VGS=-2.5V -800 0.86@ VGS=-1.8V PPM723T201E0 P-Channel MOSFET D（3） G（1） S（2） Absolute maximum rating@25℃ Parameter .

PPM723T201E0-Prisemi.pdf

PPM723T201E0 Datasheet Preview — Preview of PPM723T201E0 PDF

Datasheet Details

Part number:

PPM723T201E0

Manufacturer:

Prisemi

File Size:

255.93 KB

Description:

P-channel mosfet.
