PL2303GR Datasheet - Prolific

PL2303GR Single-chip USB to RS-485

USB to RS-485 IC with GPIO Product Data Sheet PL2303GR PL2303GR Single-chip USB to RS-485 IC with GPIO USB Interface Fully Compliant with USB 2.0 specification (Full-Speed Mode). UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible. Provides royalty-free USB to Virtual Com Port (VCP) drivers for Windows, Mac, Linux, and Android. Highly integrated USB 1.1 FS Transceiver. Integrated termination resistors and pull-up resistor to reduce PCB exter.

PL2303GR Datasheet (1.30 MB)

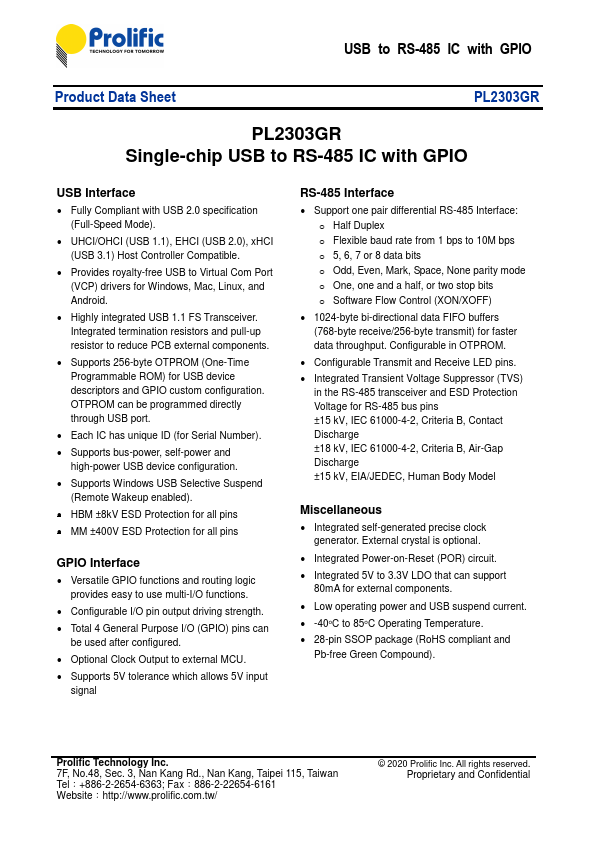

Preview of PL2303GR PDF

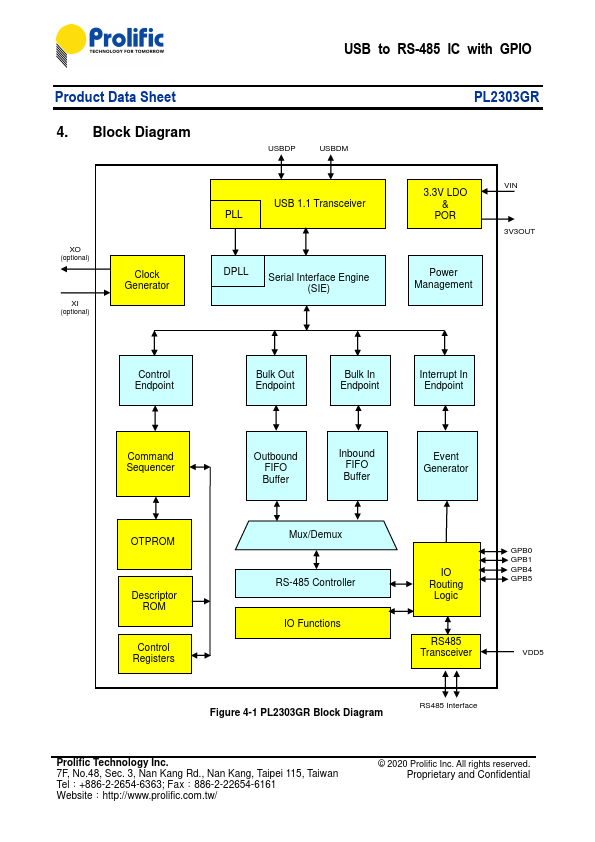

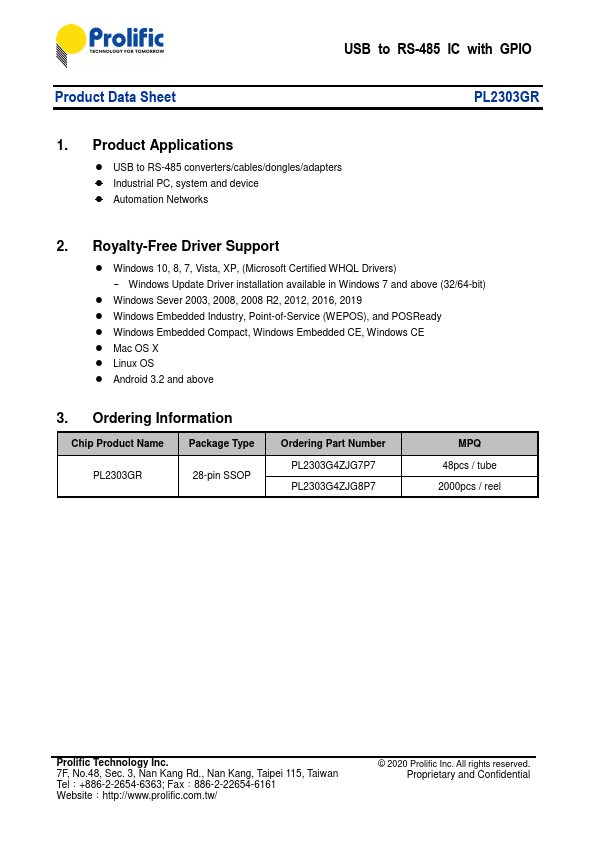

PL2303GR Datasheet Preview Page 2 PL2303GR Datasheet Preview Page 3

Datasheet Details

Part number:

PL2303GR

Manufacturer:

Prolific

File Size:

1.30 MB

Description:

Single-chip usb to rs-485.
