PL2303GS Datasheet - Prolific

PL2303GS USB to Full UART Bridge Controller

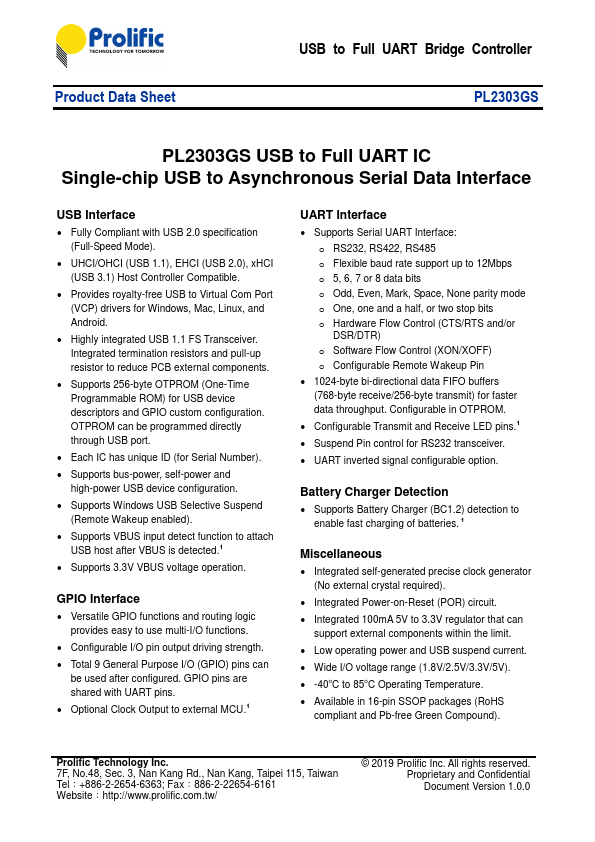

Product Data Sheet USB to Full UART Bridge Controller PL2303GS PL2303GS USB to Full UART IC Single-chip USB to Asynchronous Serial Data Interface USB Interface Fully Compliant with USB 2.0 specification (Full-Speed Mode). UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible. Provides royalty-free USB to Virtual Com Port (VCP) drivers for Windows, Mac, Linux, and Android. Highly integrated USB 1.1 FS Transceiver. Integrated termination resistor.

PL2303GS-Prolific.pdf

Preview of PL2303GS PDF

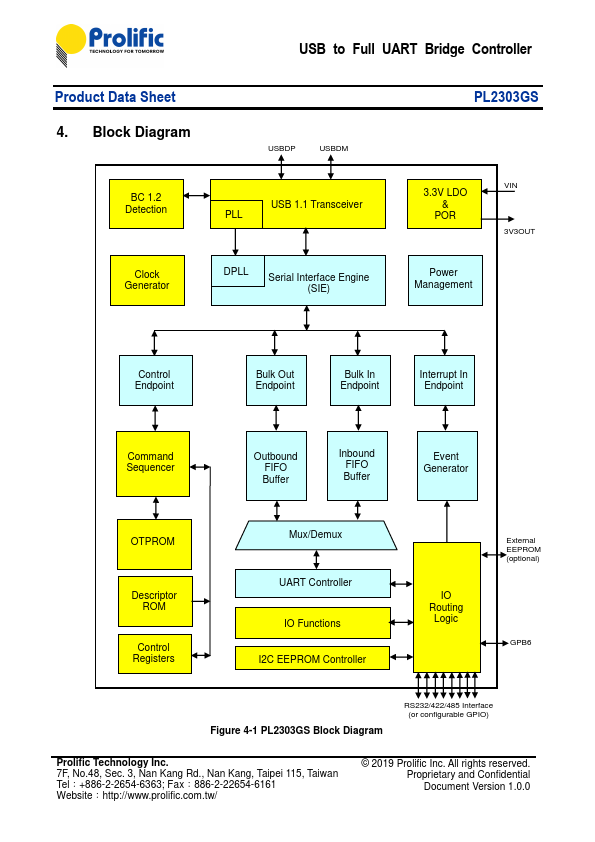

PL2303GS Datasheet Preview Page 2 PL2303GS Datasheet Preview Page 3

Datasheet Details

Part number:

PL2303GS

Manufacturer:

Prolific

File Size:

1.19 MB

Description:

Usb to full uart bridge controller.
