PL3929-A - 12V Single coil Motor Driver

PL3929-A Description

DC Brushless Motor Driver IC PL3929-A 12V Single coil Motor Driver IC with PWM control Applications * Single coil DC brushless motor .

PL3929-A Features

* Built-in hall sensor
* Single phase full wave driver
* Soft switching output driver
* Motor locked protection and automatic restart
* Speed controllable by DC/PWM
* FG output
* Current limit
* Low speed setting
* Quick start
* Built-in hysteresis comparator

📥 Download Datasheet

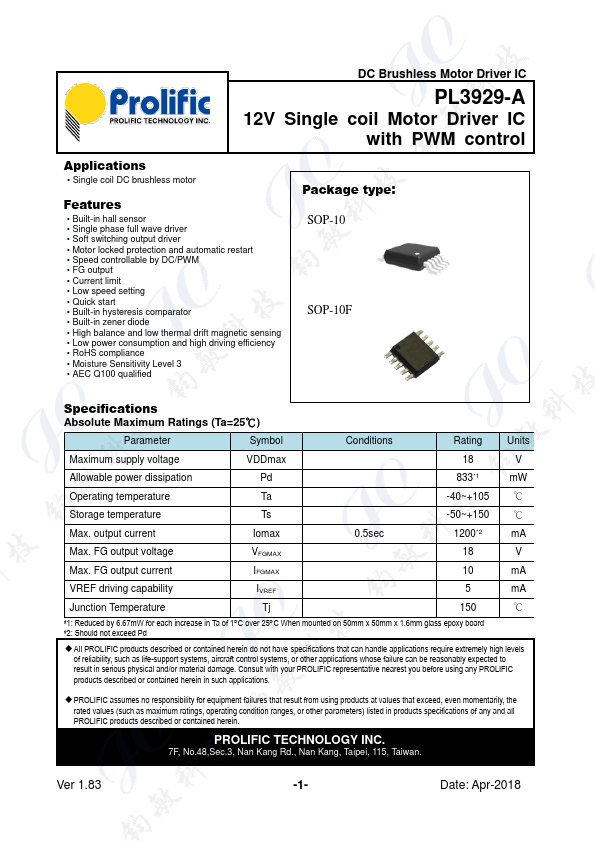

Preview of PL3929-A PDF

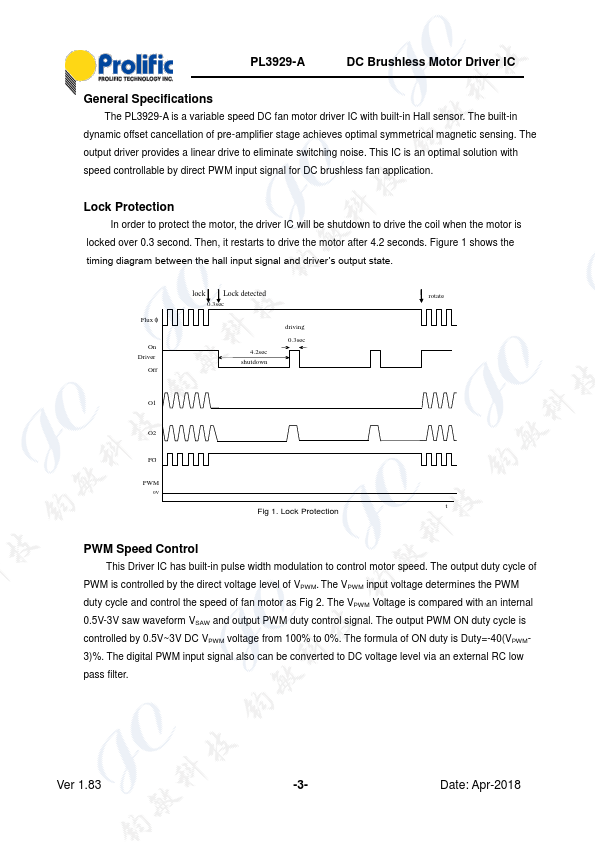

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PL3929-A
Manufacturer
Prolific
File Size
1.50 MB
Datasheet
PL3929-A-Prolific.pdf
Description
12V Single coil Motor Driver
