PL393V-A - 24V Single-phase Motor Driver

PL393V-A Description

DC Brushless Motor Driver IC PL393V-A 24V Single-phase Motor Driver with PWM speed control Applications * Single coil DC brushless motor * Au.

PL393V-A Features

* Built-in hall sensor
* Single phase full wave driver
* Linear Soft switching output driver
* Motor locked protection and automatic restart
* Speed controllable by DC/PWM
* FG output
* Current limit protection
* Quick start
* Built-in hysteresis comparator

PL393V-A Applications

* Single coil DC brushless motor

📥 Download Datasheet

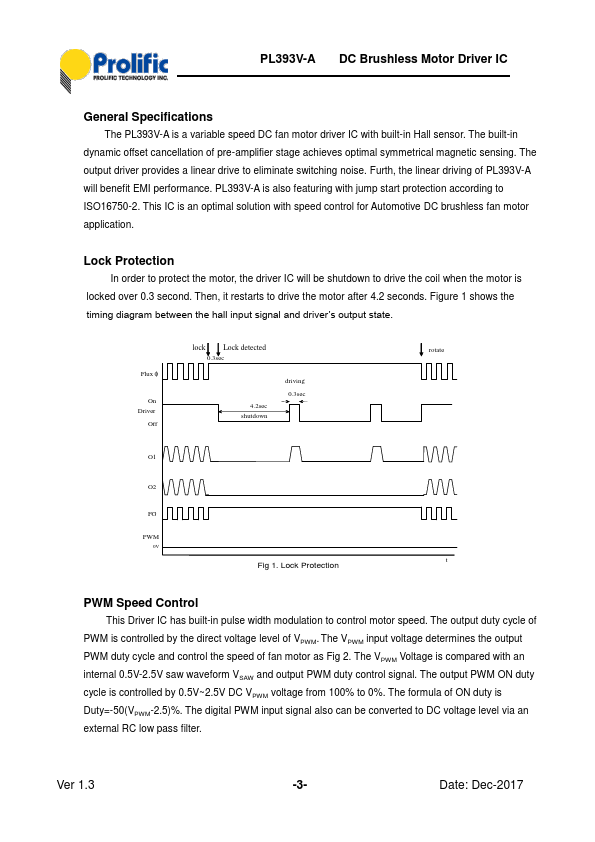

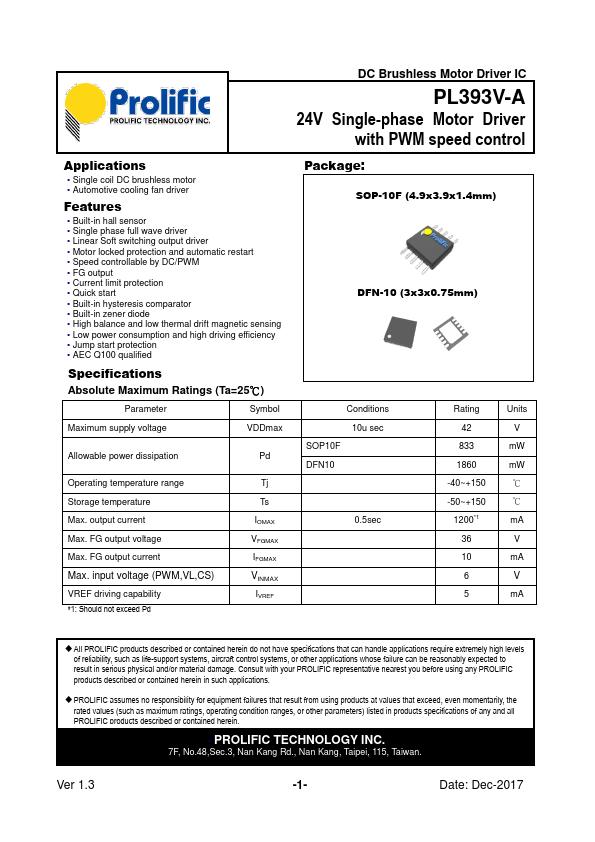

Preview of PL393V-A PDF

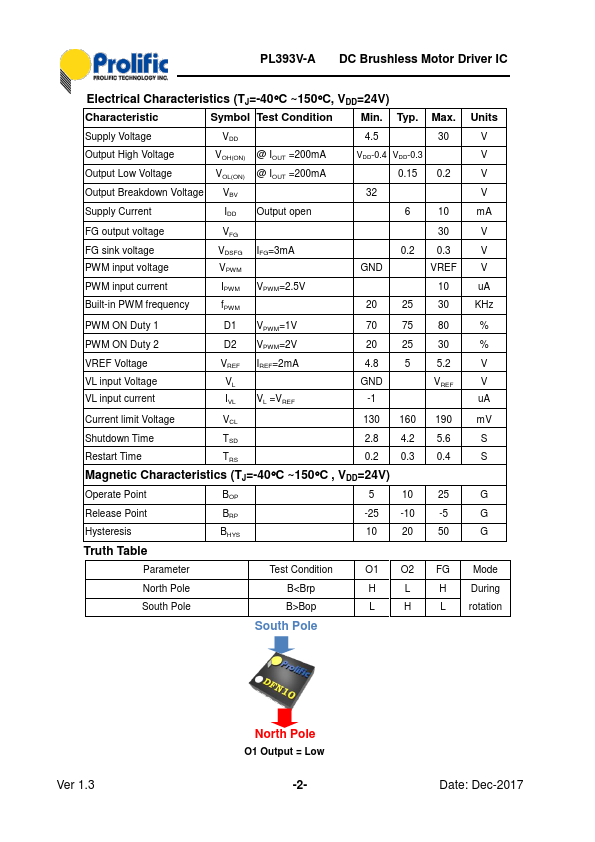

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PL393V-A
Manufacturer
Prolific
File Size
501.24 KB
Datasheet
PL393V-A-Prolific.pdf
Description
24V Single-phase Motor Driver
