DLZ-30, DLZ-5 Datasheet - Protek Devices

DLZ-30 HIGH POWERED MULTI-LINE TVS ARRAY

The DLZ Series of silicon transient voltage suppressors (TVS) are available in a ceramic, hermetically sealed dual-in-line package. This series is designed to protect aerospace, standard TTL and MOS bus lines in applications where NEMP, ESD and other induced voltage surges can damage or upset voltag.

DLZ-30 Features

* RTCA DO-160G COMPLIANT PRODUCT

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line)

* MIL-STD-

DLZ-5-ProtekDevices.pdf

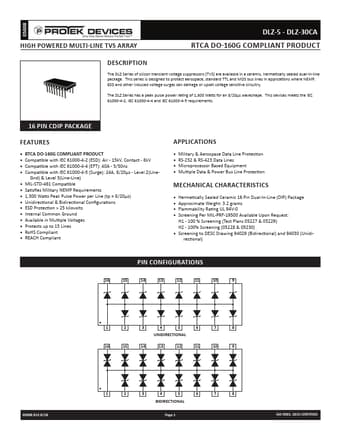

DLZ-30 Datasheet Preview — This datasheet PDF includes multiple part numbers: DLZ-30, DLZ-5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DLZ-30, DLZ-5

Manufacturer:

Protek Devices

File Size:

301.13 KB

Description:

High powered multi-line tvs array.

Note:

This datasheet PDF includes multiple part numbers: DLZ-30, DLZ-5.
Please refer to the document for exact specifications by model.
