DLZ-30A, DLZ-5 HIGH POWERED MULTI-LINE TVS ARRAY

DLZ-30A Description

05008 Only One Name Means ProTek’Tion™ HIGH POWERED MULTI-LINE TVS ARRAY DLZ-5 - DLZ-30CA RTCA DO-160G COMPLIANT PRODUCT .
The DLZ Series of silicon transient voltage suppressors (TVS) are available in a ceramic, hermetically sealed dual-in-line package.

DLZ-30A Features

* RTCA DO-160G COMPLIANT PRODUCT
* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line)
* MIL-STD-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DLZ-30A, DLZ-5. Please refer to the document for exact specifications by model.

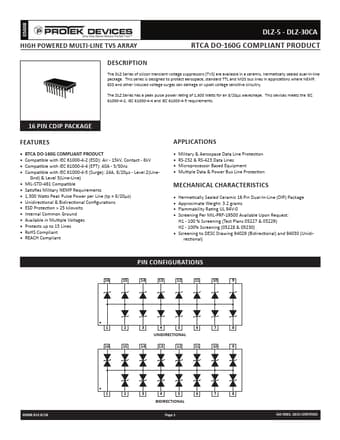

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DLZ-30A, DLZ-5
Manufacturer
Protek Devices
File Size
301.13 KB
Datasheet
DLZ-5-ProtekDevices.pdf
Description
HIGH POWERED MULTI-LINE TVS ARRAY
Note
This datasheet PDF includes multiple part numbers: DLZ-30A, DLZ-5.
Please refer to the document for exact specifications by model.
