DLZ-30C

HIGH POWERED MULTI-LINE TVS ARRAY

DLZ-30C Features

* RTCA DO-160G COMPLIANT PRODUCT

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line)

* MIL-STD-

DLZ-30C General Description

The DLZ Series of silicon transient voltage suppressors (TVS) are available in a ceramic, hermetically sealed dual-in-line package. This series is designed to protect aerospace, standard TTL and MOS bus lines in applications where NEMP, ESD and other induced voltage surges can damage or upset voltag.

DLZ-30C Datasheet (301.13 KB)

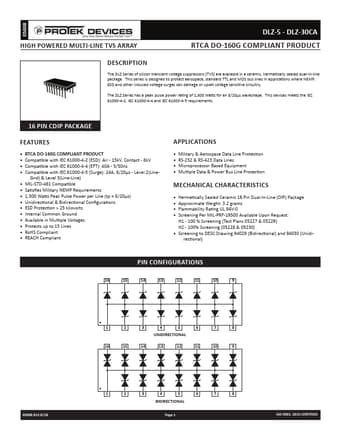

Preview of DLZ-30C PDF

Datasheet Details

Part number:

DLZ-30C

Manufacturer:

Protek Devices

File Size:

301.13 KB

Description:

High powered multi-line tvs array.
