PLR0524P Ultra Low caPacitance steeRing diode/tvs aRRay

PLR0524P Description

05381 Only One Name Means ProTek’Tion™ PLR0524P ultra low capacitance steering diode/tvs array .
The PLR0524P is an ultra low capacitance steering diode/TVS array.

PLR0524P Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Lightning): 4A - 8/20µs
* ESD Protection > 25 kilovolts
* 60 Watts Peak Pulse Power per Line (tp=8/20µs)

PLR0524P Applications

* such as gigabit Ethernet, HDMI, USB and DVI interfaces as well as telecommunication equipment and systems. The PLR0524P is available in the space-saving DFN-10 package configuration and is rated at 60 Watts peak pulse power per line for a 8/20µs waveshape. This device meets the IEC 61000-4-2 (ESD),

📥 Download Datasheet

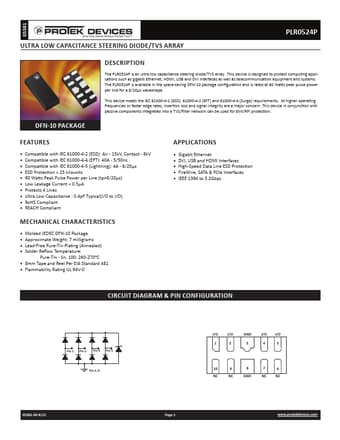

Preview of PLR0524P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PLR0524P
Manufacturer
Protek Devices
File Size
843.97 KB
Datasheet
PLR0524P_ProtekDevices.pdf
Description
Ultra Low caPacitance steeRing diode/tvs aRRay
