PA1005.050NL TRANSFORMERS

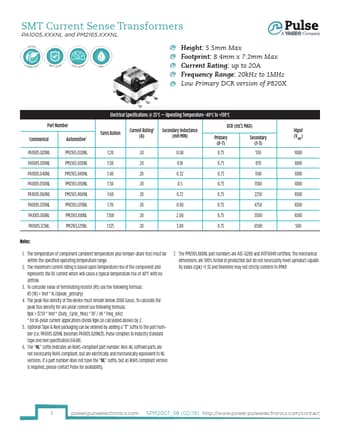

SMT CURRENT SENSE TRANSFORMERS PA1005.XXXNL Series Height: 5.1mm Max Footprint: 8.4mm x 7.2mm Max Current Rating: up to 20A Frequency Range: 50kHz to 1MHz Low Primary DCR version of P820X Electrical Specifications @ 25°C Operating Temperature -40°C to +130°C Part 5,6 Number Turns Ratio Current 2 Rating (A) Secondary Inductance (mH MIN) DCR (mΩ MAX) Primary (8-7) Secondary (1-3) Hipot (VRMS) PA1005.020NL 1:20 20 0.08 0.75 550 500 PA1005.030NL 1:30 20 0.18 0.75 87.

PA1005.050NL Datasheet (290.39 KB)
