PA2872NL High Frequency Wire Wound Transformers

Pulse

PA2872NL Description

High Frequency Wire Wound Transformers EF20 Platforms - THT Type AC/DC and DC/DC Switching Transformers Reinforced Insulation 3000Vrms Hi-pot Topology.

PA2872NL Applications

* it is necessary to ensure that the transformer will not saturate in the application. The peak flux density (Bpk) should remain below 2700Gauss. To calculate the peak flux density use the following formula: Bpk (Gauss) = K1_Factor
* Ipk(A) 3. In high volt-μsec applications, it is important to

📥 Download Datasheet

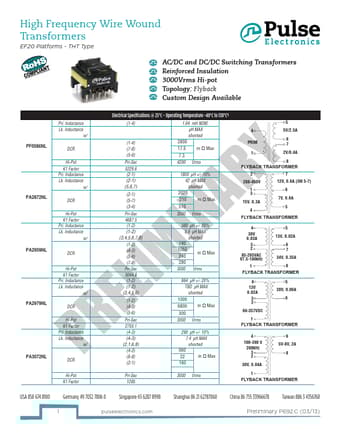

PA2872NL Datasheet Preview — Preview of PA2872NL PDF

Datasheet Details

Part number: PA2872NL
Manufacturer: Pulse
File Size: 548.40 KB
Datasheet: PA2872NL-Pulse.pdf
Description: High Frequency Wire Wound Transformers
