PA2891.211HL SMT Power Inductor

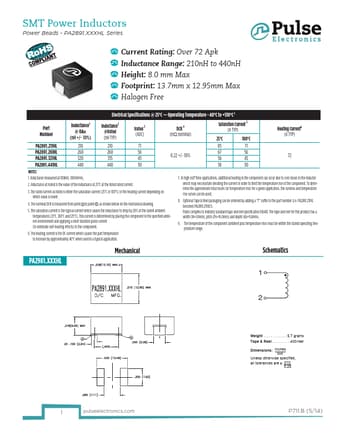

Pulse Jack SMT Power Inductors Power Beads - PA2891.XXXHL Series Current Rating: Over 72 Apk Inductance Range: 210nH to 440nH Height: 8.0 mm Max Footprint: 13.7mm x 12.95mm Max Halogen Free Electronics Electrical Specifications @ 25°C Operating Temperature - 40°C to +130°C 7 Part Number Inductance1 @ 0ADC (nH +/- 10%) Inductance2 @Irated (nH TYP) Irated 3 (ADC) DCR 4 (mΩ nominal) Saturation Current 5 (A TYP) 25°C 100°C Heating Current6 (A TYP) PA2891.211HL 210 210 71 .
