PE-68822NL, PE-68841NL Datasheet - Pulse

PE-68822NL T1/CEPT/ISDN-PRI TRANSFORMERS

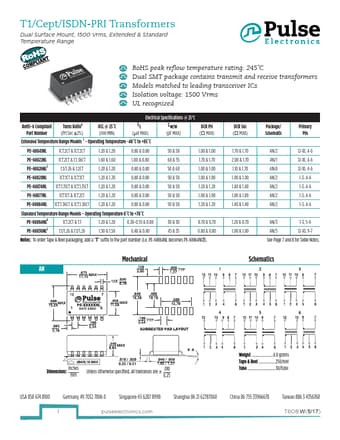

T1/Cept/ISDN-PRI Transformers Dual Surface Mount, 1500 Vrms, Extended & Standard Temperature Range RoHS peak reflow temperature rating: 245 C Dual SMT package contains transmit and receive transformers Models matched to leading transceiver ICs Isolation voltage: 1500 Vrms UL recognized Electrical Specifications @ 25°C RoHS-6 Compliant Turns RatioB OCL @ 25 C LL Cw/w DCR Pri Part Number (Pri:Sec ±2%) (mH MIN) (μH MAX) (pF MAX) (Ω MAX) Extended Temperature Range Models 1 - Ope.

PE-68841NL-Pulse.pdf

PE-68822NL Datasheet Preview — This datasheet PDF includes multiple part numbers: PE-68822NL, PE-68841NL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE-68822NL, PE-68841NL

Manufacturer:

Pulse

File Size:

349.67 KB

Description:

T1/cept/isdn-pri transformers.

Note:

This datasheet PDF includes multiple part numbers: PE-68822NL, PE-68841NL.
Please refer to the document for exact specifications by model.
