PE-68826 Datasheet - Pulse

PE-68826 T1/CEPT/ISDN-PRI TRANSFORMERS

T1/CEPT/ISDN-PRI TRANSFORMERS Dual Surface Mount, 1500Vrms, Extended and Standard Temperature Range Dual SMT package contains both transmit and receive transformers Models matched to leading transceiver ICs Isolation voltage: 1500Vrms UL recognized RoHS compliant versions available Electrical Specifications @ 25°C Part Number Turns Ratio B (Pri:Sec ± 2%) OCL @ 25°C (mH MIN) LL (µH MAX) CW/W (pF MAX) DCR Pri (Ω MAX) DCR Sec (Ω MAX) Package/ Primary Schematic Pins EXTENDED TEMPERATURE .

PE-68826 Datasheet (72.11 KB)

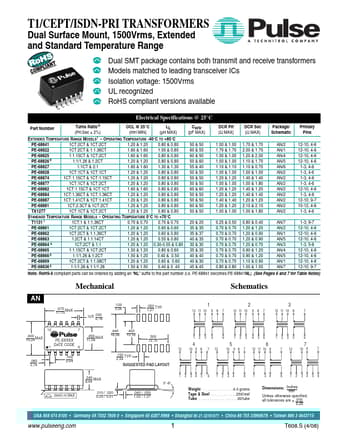

Preview of PE-68826 PDF

Datasheet Details

Part number:

PE-68826

Manufacturer:

Pulse

File Size:

72.11 KB

Description:

T1/cept/isdn-pri transformers.
