PF0552.474NL, PF055x SMT POWER INDUCTORS

PF0552.474NL Description

SMT POWER INDUCTORS Shielded Drum Core PF0552NL and PF0553NL Series Single, coupled or (1:1) transformer applications Footprint: PF0552NL - 12.5mm x 1.

PF0552.474NL Applications

* Footprint: PF0552NL - 12.5mm x 12.5mm x 6mm Max PF0553NL - 12.5mm x 12.5mm x 8mm Max Current Rating: up to 17.72A Inductance Range: 0.47µH to 4mH 260°C reflow peak temperature qualified 200Vac isolation between windings Part 2,3 Number PF0552.471NL PF0552.102NL PF0552.152NL PF0552.471NL PF0552.222N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PF0552.474NL, PF055x. Please refer to the document for exact specifications by model.

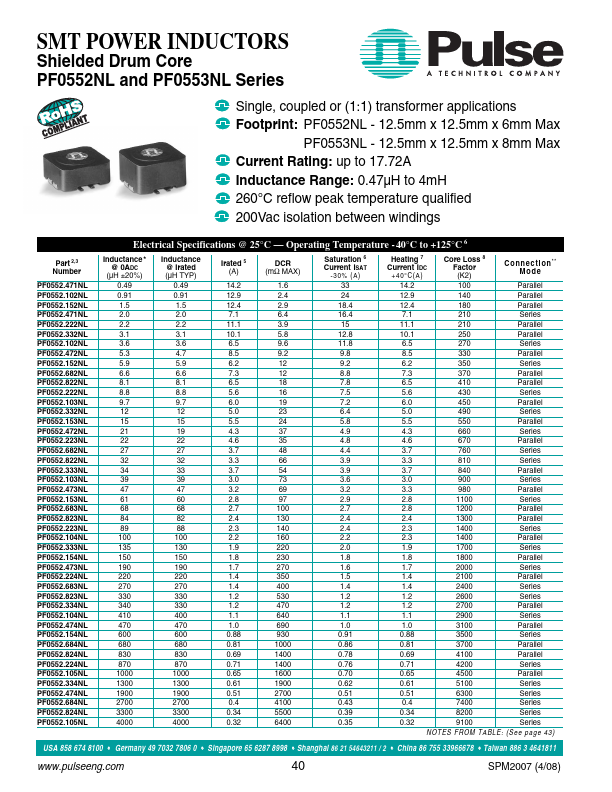

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PF0552.474NL, PF055x
Manufacturer
Pulse
File Size
163.22 KB
Datasheet
PF055x-xxNL.pdf
Description
SMT POWER INDUCTORS
Note
This datasheet PDF includes multiple part numbers: PF0552.474NL, PF055x.
Please refer to the document for exact specifications by model.
