ASM3P2855B - Custom Clock Generator

Product Overview

Part number	ASM3P2855B
Manufacturer	PulseCore Semiconductor
File Size	338.30 KB
Description	Custom Clock Generator
Datasheet	ASM3P2855B Datasheet

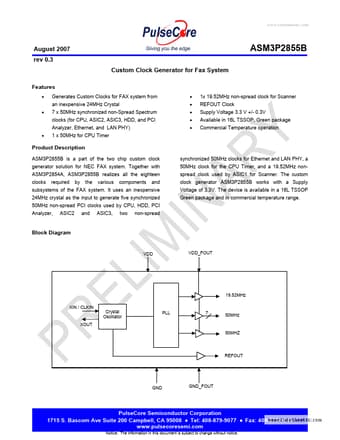

Additional preview pages of the ASM3P2855B datasheet.

ASM3P2855B is a part of the two chip custom clock generator solution for NEC FAX system.

Generates Custom Clocks for FAX system from an inexpensive 24MHz Crystal 7 x 50MHz synchronized non-Spread Spectrum clocks (for CPU, ASIC2, ASIC3, HDD, and PCI Analyzer, Ethernet, and LAN PHY).
1 x 50MHz for CPU Timer.
ASM3P2855B 1x 19.52MHz non-spread clock for Scanner REFOUT Clock Supply Voltage 3.3 V +/- 0.3V Available in 16L TSSOP, Green package Commercial Temperature operation Product.
