ASM3P2811B

(ASM3P281xA/B) Low Power EMI Reduction IC

ASM3P2811B Features

* FCC approved method of EMI attenuation. Provides up to 15dB EMI reduction. Generates a 1X, 2X and 4X low EMI spread spectrum clock of the input frequency. o o o to 40 MHz. o o o ASM3P2811A/B: 10 to 40MHz ASM3P2812A/B: 10 to 40MHz ASM3P2814A/B: 10 to 40MHz 1X: ASM3P2811A/B 2X: ASM3P2812A/B 4X: ASM3P2

ASM3P2811B General Description

The ASM3P28XX devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 10MHz to 40MHz. (Refer Input/Output Frequency Range Selection Table). The ASM3P28XX can generate an EMI reduced clock from crystal, ceramic resonator, or sy.

ASM3P2811B Datasheet (195.66 KB)

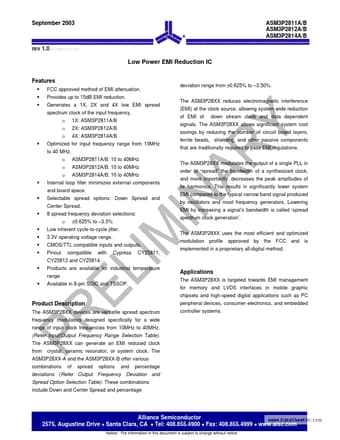

Preview of ASM3P2811B PDF

Datasheet Details

Part number:

ASM3P2811B

Manufacturer:

Alliance Semiconductor Corporation

File Size:

195.66 KB

Description:

(asm3p281xa/b) low power emi reduction ic.
