ASM3P2811A - (ASM3P281xA/B) Low Power EMI Reduction IC

Product Overview

Alliance Semiconductor Corporation

Datasheet Details

Part number	ASM3P2811A
Manufacturer	Alliance Semiconductor Corporation
File Size	195.66 KB
Description	(ASM3P281xA/B) Low Power EMI Reduction IC
Datasheet	ASM3P2811A Datasheet

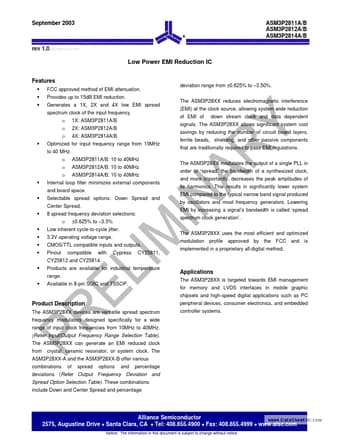

Additional preview pages of the ASM3P2811A datasheet.

Product details

Description

The ASM3P28XX devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 10MHz to 40MHz.

Features

FCC approved method of EMI attenuation. Provides up to 15dB EMI reduction. Generates a 1X, 2X and 4X low EMI spread spectrum clock of the input frequency. o o o to 40 MHz. o o o ASM3P2811A/B: 10 to 40MHz ASM3P2812A/B: 10 to 40MHz ASM3P2814A/B: 10 to 40MHz 1X: ASM3P2811A/B 2X: ASM3P2812A/B 4X: ASM3P2814A/B deviation range from ±0.625% to.
3.50%. The ASM3P28XX reduces electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of down stream clock and dat.
