6N135 Datasheet, optocouplers equivalent, QT Optoelectronics

6N135 Features

• Optocouplers
• High speed-1 MBit/s
• Superior CMR-10 kV/µs
• Dual-Channel HCPL-2530/HCPL-2531
• Double working voltage-480V RMS
• CTR guaranteed 0-70°C
<

PDF File Details

Part number:

6N135

Manufacturer:

QT Optoelectronics

File Size:

169.54kb

Download:

📄 Datasheet

Description:

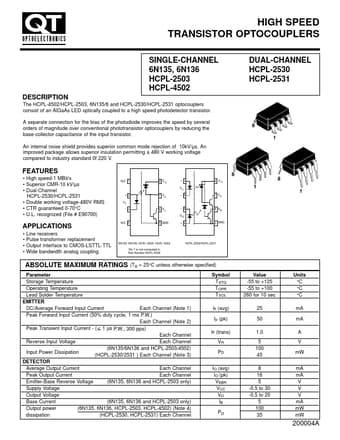

High speed transistor optocouplers. The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL-2531 optocouplers consist of an AlGaAs LED optically coupled to a high speed phot

6N135 Application

• Applications
• Line receivers Pulse transformer replacement Output interface to CMOS-LSTTL-TTL Wide bandwidth
