CNY17F-2 6-PIN DIP OPTOCOUPLERS

CNY17F-2 Description

6-PIN DIP OPTOCOUPLERS FOR POWER SUPPLY APPLICATIONS (NO BASE CONNECTION) .
The CNY17F series consists of a Gallium Arsenide IRED coupled with an NPN phototransistor CNY17F-1 (CTR = 40%-80%) FEATURES.

CNY17F-2 Features

* High isolation voltage 5300 VAC RMS-1 minute, 7500 VAC PEAK-1 minute High BVCEO minimum 70 volts Maximum switching time in saturation specified Underwriters Laboratory (UL) recognized file #E90700 CNY17F-2 (CTR = 63%-125%) CNY17F-3 (CTR = 100%-200%) APPLICA

📥 Download Datasheet

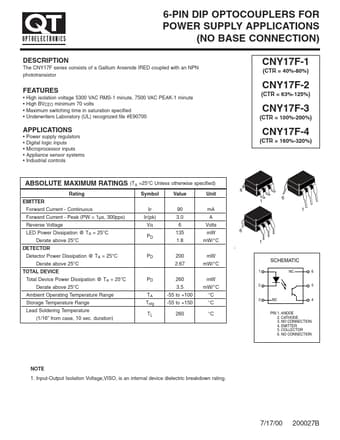

Preview of CNY17F-2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CNY17F-2
Manufacturer
QT Optoelectronics
File Size
100.63 KB
Datasheet
CNY17F-2_QTOptoelectronics.pdf
Description
6-PIN DIP OPTOCOUPLERS
