HYE18L512160BF-7.5 - DRAMs for Mobile Applications 512-Mbit Mobile-RAM
133 MHz 4 Banks × 8 Mbit × 16 LP-SDRAM 133 MHz 4 Banks × 8 Mbit × 16 LP-SDRAM Standard Temperature Range Extended Temperature Range 1) HY[B/E]: Designator for memory products (HYB: Standard temp range, HYE: extended temp.
range) 18L: 1.8 V Mobile-RAM 512: 512 MBit density 160: 16 bit interface width

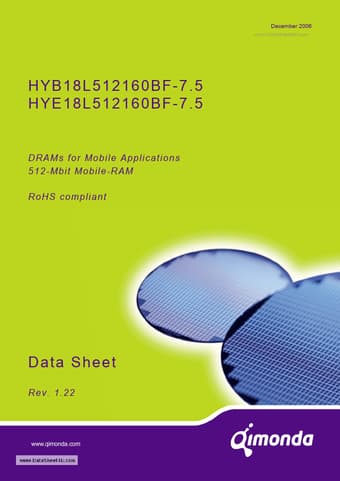

December 2006 www.DataSheet4U.com HYB18L512160BF-7.5 HYE18L512160BF-7.5 DRAMs for Mobile Applications 512-Mbit Mobile-RAM RoHS compliant Data S heet Rev.
1.22 Data Sheet.
www.DataSheet4U.com HY[B/E]18L512160BF-7.5 512-Mbit Mobile-RAM HYB18L512160BF-7.5, HYE18L512160BF-7.5 Revision History: 2006-12, Rev.
1.22 Page All 51 54 50 Subjects (major changes since last revision) Qimonda update IDD7 change from 20 to 25 Updated the package drawing.
Table 20: Delete note 6 Change Note 6 from (tT -1)
HYE18L512160BF-7.5 Features
* 4 banks × 8 Mbit × 16 organization Fully synchronous to positive clock edge Four internal banks for concurrent operation Programmable CAS latency: 2, 3 Programmable burst length: 1, 2, 4, 8 or full page Programmable wrap sequence: sequential or interleaved Programmable drive strength Auto refresh a
