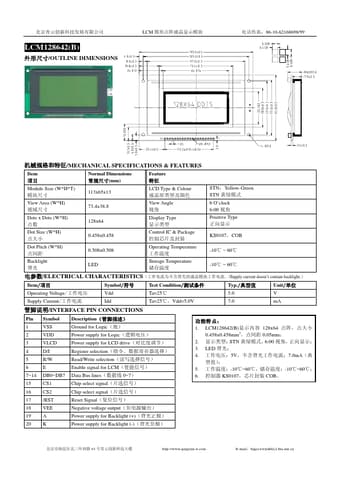

LCM128642B Datasheet, Module, Qingyun Innovation

LCM128642B Features

• Module Item Module Size (W
• H
• T) Normal Dimensions (mm) 113x65x13 Feature LCD Type & Colour STN：Yellow-Green STN View Area (W
• H) 73.4x38.8 View Angle 6 O’

PDF File Details

Part number:

LCM128642B

Manufacturer:

Qingyun Innovation

File Size:

99.72kb

Download:

📄 Datasheet

Description:

Lcm module. ） Ground for Logic（） Power supply for Logic（） Power supply for LCD drive（） Register selection（、） Read/Write selection（） Enable signal
