QPA2598 Datasheet, Amplifier, Qorvo

QPA2598 Features

  • Amplifier
  • Frequency Range: 6 - 12 GHz
  • Small Signal Gain: 23 dB (mid-band)
  • Pout: 34 dBm (PIN = 18 dBm)
  • PAE: 30 % CW
  • Power Gain: 16 dB (PIN = 18 dB

PDF File Details

Part number:

QPA2598

Manufacturer:

Qorvo

File Size:

1.00MB

Download:

📄 Datasheet

Description:

2.5w gan driver amplifier. Qorvo’s QPA2598 is a packaged broadband driver amplifier fabricated on Qorvo’s QGaN15 0.15 um GaN on SiC process. Operating from 6 to

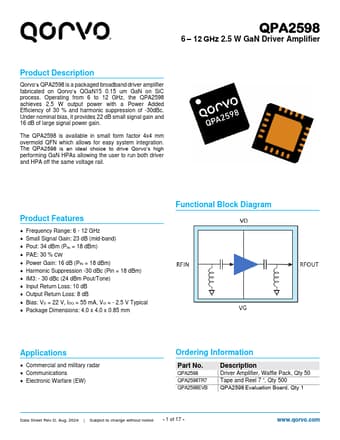

Datasheet Preview: QPA2598 📥 Download PDF (1.00MB)
Page 2 of QPA2598 Page 3 of QPA2598

QPA2598 Application

  • Applications
  • Commercial and military radar
  • Communications
  • Electronic Warfare (EW) Ordering Information Part No. QPA2
