QD23WL04 Datasheet - Quanta

TFT LCD

QD23WL04 Features

* 1) High aperture panel; high-brightness 2) Brilliant and high contrast image. 3) High speed response 4) WXGA resolution. 15:9 5) LVDS interface. 6) ASV technology 7) Wide viewing angle. 3. General Specifications Parameter Display size Active area Pixel format Pixel pitch Pixel configuration Displa

QD23WL04 General Description

1 VDD Power Input +24V 2 VDD Power Input +24V 3 VDD Power Input +24V 4 NC Not connection 5 PWSEL Select of luminance control signal method 6 BRTP PWM signal 7 BRTI Luminance by voltage method 8 BRTC Backlight On/OFF signal 9 NC Not connection 10 GND Ground 11 GND Ground 12 GND Ground 6-3-2. Inverter.

QD23WL04 Datasheet (384.08 KB)

QD23WL04 Datasheet Preview — Preview of QD23WL04 PDF

Datasheet Details

Part number:

QD23WL04

Manufacturer:

Quanta

File Size:

384.08 KB

Description:

Tft lcd.

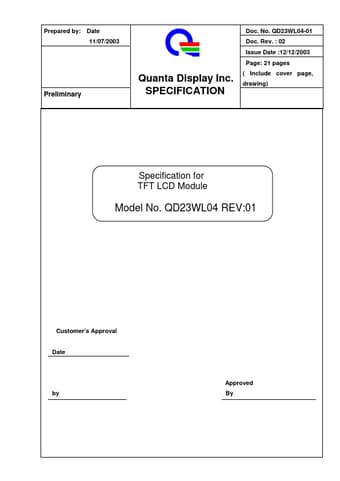

Prepared by: Date 11/07/2003 Preliminary Quanta Display Inc. SPECIFICATION Doc. No. QD23WL04-01 Doc. Rev. : 02 Issue Date :12/12/2003 Page: 21 pages.
