QD20D04 1000 Base-T single port through hole Magnetics

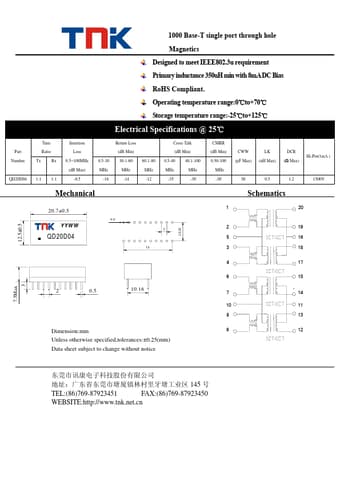

1000 Base-T single port through hole Magnetics Designed to meet IEEE802.3u requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant. Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number QD20D04 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) -0.5 Return Loss (dB Min) 0.5-30 30.1-60 60.1-80 MHz MHz MHz -16 -14 -12 Cross Talk (dB Min) 0.5-40 40.1-100 MHz MHz -35 -30 CMRR (dB Min) 0.
