QD24A01 1000 Base-T Single port through hole Magnetics

1000 Base-T Single port through hole Magnetics Designed to meet IEEE802.3ab requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant. Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number QD24A01 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) -1.0 0.5-30 MHz -18 40 MHz -16 Return Loss (dB Min) 50 MHz -14.1 60-80 MHz -12 100 MHz -10 Cross Talk (dB Min) 0.5-40 40.1-100 MHz MHz -35 -30 CM.

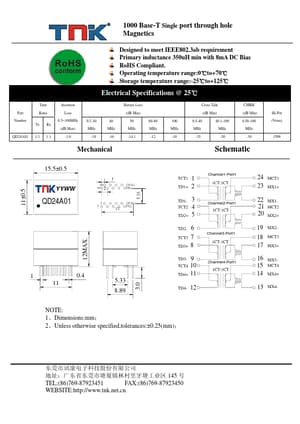

QD24A01 Datasheet (49.37 KB)

QD24A01 Datasheet Preview — Preview of QD24A01 PDF

Datasheet Details

Part number:

QD24A01

Manufacturer:

TNK

File Size:

49.37 KB

Description:

1000 base-t single port through hole magnetics.
