QAM-TX2-433

AM TRANSMITTER MODULE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part RF Solutions LTD QAM-TX2-433 RF TX IC ASK 433MHZ 4SMD MODULE DigiKey 173 1000 units
$6.59

QAM-TX2-433 Datasheet (107.61 KB)

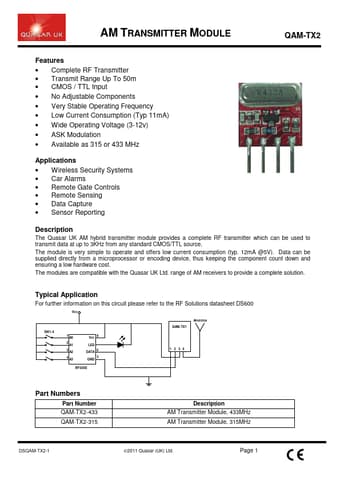

Preview of QAM-TX2-433 PDF

Datasheet Details

Part number:

QAM-TX2-433

Manufacturer:

Quasar

File Size:

107.61 KB

Description:

Am transmitter module.

QAM-TX2-433 Features

* Complete RF Transmitter

* Transmit Range Up To 50m

* CMOS / TTL Input

* No Adjustable Components

* Very Stable Operating Frequency

* Low Current Consumption (Typ 11mA)

* Wide Operating Voltage (3-12v)

* ASK Modulation

* Availa

QAM-TX2-433 General Description

The Quasar UK AM hybrid transmitter module provides a complete RF transmitter which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source. The module is very simple to operate and offers low current consumption (typ. 12mA @5V). Data can be supplied directly from a microprocess.
