QAMI5516

Single module demodulator/decoder

QAMI5516 Datasheet (76.75 KB)

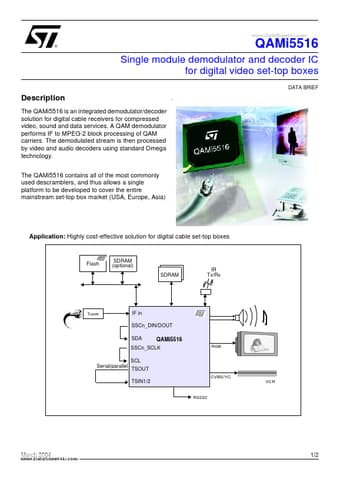

Preview of QAMI5516 PDF

Datasheet Details

Part number:

QAMI5516

Manufacturer:

STMicroelectronics ↗

File Size:

76.75 KB

Description:

Single module demodulator/decoder.

QAMI5516 Features

* Decodes ITU-T J.83-Annexes A/B/C and DVBC bitstreams

* Integrated high performance ADC

* Support for 4-, 16-, 32-, 64-, 128-, 256-point constellation variable symbol

* Rate from 0.87 MBaud to 11.7 MBaud

* Robust integrated adaptative equalizer

* I²C serial bus and I²C repea

QAMI5516 General Description

The QAMi5516 is an integrated demodulator/decoder solution for digital cable receivers for compressed video, sound and data services. A QAM demodulator performs IF to MPEG-2 block processing of QAM carriers. The demodulated stream is then processed by video and audio decoders using standard Omega te.
