RC0802A-GHY-ESV Datasheet - RAYSTAR

RC0802A-GHY-ESV LCD Module

R：Raystar Optronics Inc. Display C：Character Type, G：Graphic Type T:TAB Type X:COG Type Number of dots：Character 08 words, 02 Lines. Serials code： P→TN Positive, Gray V→FSTN Negative, Blue N→TN Negative, T→FSTN Negative, Black L→VA Negative D→FSTN Negative (Double film) H→ HTN Positive,.

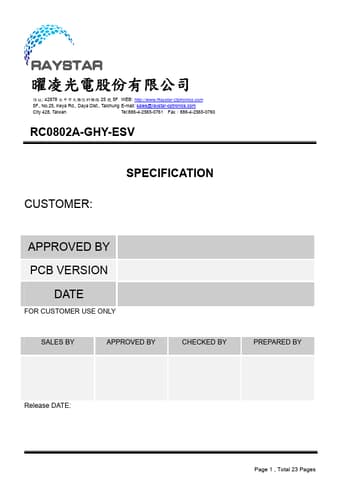

: 42878 25 5F WEB: http://www.Raystar-Optronics.com 5F., No.25, Keya Rd., Daya Dist., Taichung E-mail: sales@raystar-optronics.com City 428, Taiwan Tel:886-4-2565-0761 Fax：886-4-2565-0760 RC0802A-GHY-ESV CUSTOMER: SPECIFICATION APPROVED BY PCB VERSION DATE FOR CUSTOMER USE ONLY SALES BY APPROVED BY CHECKED BY PREPARED BY Release DATE: Page 1 , Total 23 Pages Revision History RC0802A-GHY-ESV VERSION 0 A DATE 2009/09/02 2014/12/12 REVISED PAGE NO. Note First issue Remove IC .

RC0802A-GHY-ESV Features

* is described as follow:

* Module dimension: 58.0 x 32.0 x 13.2 (max.) mm

* View area: 38.0 x 16.0 mm

* Active area: 27.81 x 11.5 mm

* Number of Characters: 8 characters x 2 Lines

* Dot size: 0.56 x 0.66 mm

* Dot pitch: 0.60 x 0.70 mm

* Character size: 2.96 x 5.56 mm
