RC0802A-YHY-CSX Datasheet - RAYSTAR

RC0802A-YHY-CSX LCD Module

7. Character Generator ROM Pattern 8. Instruction Table 9. Timing Characteristics 10. Initializing of LCM 11. Optical Characteristics 12. Absolute Maximum Ratings 13. Electrical Characteristics 14. Backlight Information 15. Reliability 16. Inspection specification 17. Precautions in use of LCD Modul.

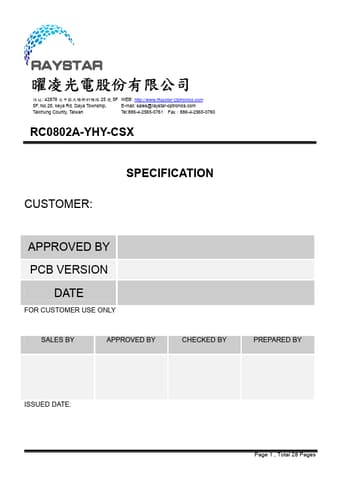

: 42878 25 5F WEB: http://www.Raystar-Optronics.com 5F, No.25, keya Rd. Daya Township, E-mail: sales@raystar-optronics.com Taichung County, Taiwan Tel:886-4-2565-0761 Fax：886-4-2565-0760 RC0802A-YHY-CSX CUSTOMER: SPECIFICATION APPROVED BY PCB VERSION DATE FOR CUSTOMER USE ONLY SALES BY APPROVED BY CHECKED BY PREPARED BY ISSUED DATE: Page 1 , Total 28 Pages Contents 1. Revision History 2. General Specification 3. Module Coding System 4. Interface Pin Function 5. Outline dimensi.

RC0802A-YHY-CSX Features

* is described as follow:

* Module dimension: 58.0 x 32.0 x 13.3 (max.) mm3

* View area: 38.0 x 16.0 mm2

* Active area: 27.81 x 11.5 mm2

* Number of Characters: 8 characters x 2 Lines

* Dot size: 0.56 x 0.66 mm2

* Dot pitch: 0.60 x 0.70 mm2

* Cha
