2N3478 - RF Power Transistors

RCA

📥 Download Datasheet

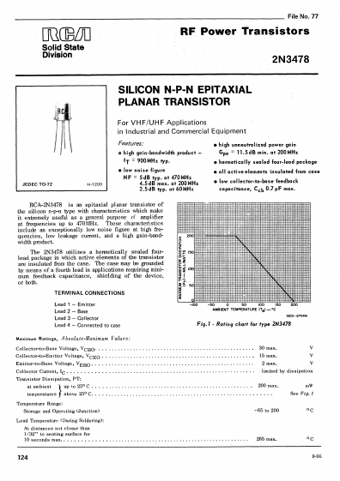

2N3478 Datasheet Preview — Preview of 2N3478 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2N3478
Manufacturer	RCA
File Size	282.02 KB
Description	RF Power Transistors
Datasheet	2N3478-RCA.pdf

2N3478 Product details

Features

o high gain. bandwidth product fT = 900MHz typo.
low noise figure NF = SdB typo at 470MHz 4.SdB max. at 200 MHz 2.Sd8 typo at 60MHz.
high unneutrolized power gain Gpe = 11.Sd8 min. at 200MHz.
hermetically sealed four-lead package.
all active elements insulated from case.
low collector-to-base feedback capacitance, Ccb 0.7 pF max. RCA-2N3478 is an epitrucial planar transistor of the silicon n-p-n 1;ype with characteristics which make it extremely use.
