CGA-7718Z, PUSH-PULL 50MHz to 1000MHz HIGH LINEARITY InGaP HBT AMPLIFIER

CGA-7718Z Push-Pull 50MHz to 1000 MHz High Linearity InGaP HBT Amplifier CGA-7718Z PUSH-PULL 50MHz to 1000MHz HIGH LINEARITY InGaP HBT AMPLIFIER Pa.
RFMD’s CGA-7718Z is a high performance InGaP HBT MMIC Amplifier.

CGA-7718Z_RFMicroDevices.pdf

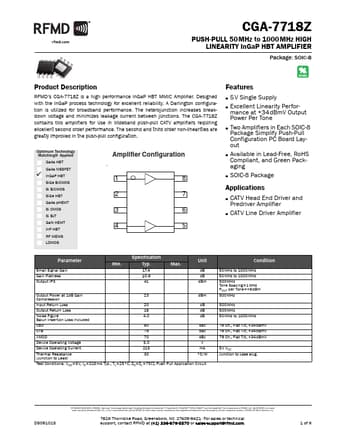

CGA-7718Z Datasheet Preview — Preview of CGA-7718Z PDF

Datasheet Details

Part number:

CGA-7718Z

Manufacturer:

RF Micro Devices

File Size:

435.44 KB

Description:

PUSH-PULL 50MHz to 1000MHz HIGH LINEARITY InGaP HBT AMPLIFIER

Features

* 5V Single Supply
* Excellent Linearity Performance at +34dBmV Output Power Per Tone
* Two Amplifiers in Each SOIC-8 Package Simplify Push-Pull Configuration PC Board Layout
* Available in Lead-Free, RoHS Compliant, and Green Packaging

Applications

* CATV Head End Driver and Predriver Amplifier
* CATV Line Driver Amplifier Parameter Small Signal Gain Gain Flatness Output IP3 Specification Min. Typ. Max. Unit 17.4 dB ±0.6 dB 41 dBm Output Power at 1dB Gain Compression 23 dBm Input Return Loss Output Return Loss Noise Fig
