CGA-3318Z Dual CATV Broadband High Linearity SiGe HBT Amplifier

Sirenza Microdevice’s CGA-3318 is a high performance Silicon Germanium HBT MMIC Amplifier. Designed with SiGe process technology for excellent linearity at an exceptional price. A Darlington configuration is utilized for broadband performance. The heterojunction increases breakdown voltage and minim.

CGA-3318Z Features

* Available in Lead free, RoHS compliant, & Green packaging

* Excellent CSO/CTB/XMOD Performance at

* +34 dBmV Output Power per Tone Dual Devices in each SOIC-8 Package simplify Push-Pull configuration PC board layout 5 to 900 MHz operation ELECTRICAL SPECIFICATION

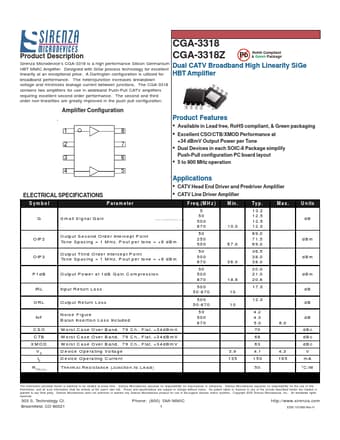

CGA-3318_SirenzaMicrodevices.pdf

CGA-3318Z Datasheet Preview — This datasheet PDF includes multiple part numbers: CGA-3318Z, CGA-3318. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CGA-3318Z, CGA-3318

Manufacturer:

Sirenza Microdevices

File Size:

262.40 KB

Description:

Dual catv broadband high linearity sige hbt amplifier.

Note:

This datasheet PDF includes multiple part numbers: CGA-3318Z, CGA-3318.
Please refer to the document for exact specifications by model.
