CGA-0116 Datasheet - Sirenza Microdevices

3-Output Active Splitter

CGA-0116 Features

* Available in Lead Free, RoHS compliant, and Green packaging Broad Frequency Band: 50 to 870 MHz Flat Gain Response: < ±0.5 dB Variance Internally Matched to 75 Ω High Isolation between Output Ports: >35 dB High IP2: >1

CGA-0116 General Description

Consumer products, such as Set-Top boxes, PVR’s, Home Gateways, and Cable Modems, often require a technique for “splitting” the incoming RF CATV signal, to perform various functions, such as picture-inpicture, VOIP, data, and video recording. Sirenza Microdevices’ CGA-0116 is a high performance 3out.

CGA-0116 Datasheet (193.40 KB)

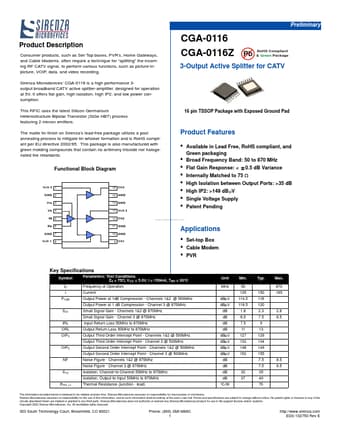

Preview of CGA-0116 PDF

Datasheet Details

Part number:

CGA-0116

Manufacturer:

Sirenza Microdevices

File Size:

193.40 KB

Description:

3-output active splitter.
