NBB-302 Datasheet - RF Micro Devices

NBB-302 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER

The NBB-302 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs. This 50 Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for small-signal applications. Desi.

NBB-302 Features

* Reliable, Low-Cost HBT Design

* 12.0dB Gain, +13.7dBm P1dB@2GHz

* High P1dB of +14.0dBm@6.0GHz and +11.0dBm@14.0GHz Pin 1 Indicator 1 RF OUT 8 Ground 7 6 5 9 4 RF IN 2 3 Ground

* Single Power Supply Operation

* 50 Ω I/O Matched for High Freq. Use Ordering

NBB-302_RFMicroDevices.pdf

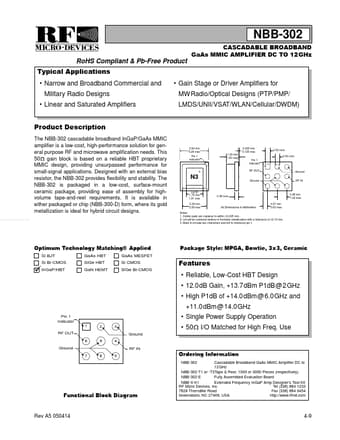

Preview of NBB-302 PDF
NBB-302 Datasheet Preview Page 2 NBB-302 Datasheet Preview Page 3

Datasheet Details

Part number:

NBB-302

Manufacturer:

RF Micro Devices

File Size:

243.24 KB

Description:

Cascadable broadband gaas mmic amplifier.
