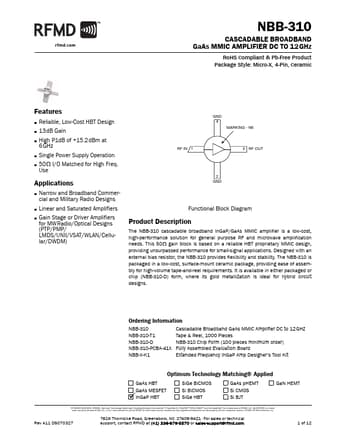

NBB-310 Datasheet, amplifier equivalent, RF Micro Devices

NBB-310 Features

• Amplifier
• Reliable, Low-Cost HBT Design
• 13dB Gain
• High P1dB of +15.2dBm at 6 GHz
• Single Power Supply Operation
• 50Ω I/O Matched for High Freq. Use

PDF File Details

Part number:

NBB-310

Manufacturer:

RF Micro Devices

File Size:

280.70kb

Download:

📄 Datasheet

Description:

Cascadable broadband gaas mmic amplifier. The NBB-310 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microw

NBB-310 Application

• Applications
• Narrow and Broadband Commercial and Military Radio Designs
• Linear and Saturated Amplifiers
• Gain Stage or
